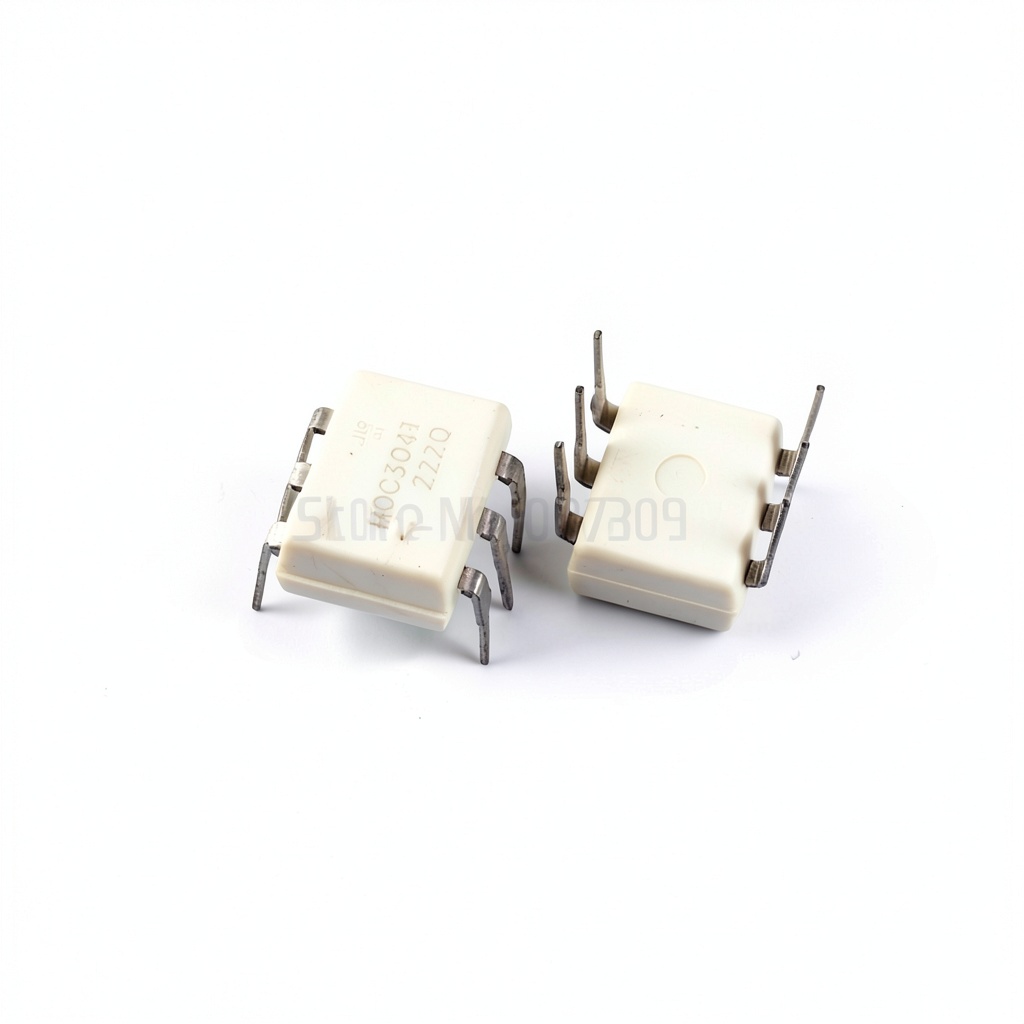

Zero-Cross Optoisolator MOC3041 10PCS Triac Driver DIP-6 by DBParts

Description

Product Overview

The DBParts MOC3041 Zero-Cross Optoisolator is engineered to provide precise and reliable isolation for triac driver applications. Packaged in a sturdy DIP-6 footprint measuring 3.43 x 2.28 x 0.28 inches and weighing only 0.32 ounces, this component fits comfortably onto standard printed circuit boards without compromising board real estate. The device features a zero‑cross detection mechanism that synchronizes the switching of the triac with the AC line voltage zero‑crossing point, dramatically reducing electromagnetic interference and extending the lifespan of downstream power devices.

Manufactured by DBParts, a trusted name in optoelectronic components, the MOC3041 series has earned a solid reputation reflected in its Amazon Best Sellers Rank of #13 in Optoisolators and a 4.8‑star rating from seven verified customers. The package includes ten individual units, each tested for performance consistency and backed by a six‑month warranty that underscores the brand’s confidence in product durability.

Usage

This optoisolator excels in a variety of industrial and commercial environments where reliable AC line switching is critical. Typical applications include motor control circuits for pumps and fans, lighting dimmer modules for commercial illumination, HVAC system controllers, and solid‑state relay interfaces. Its zero‑cross capability ensures smooth start‑up and shut‑down of inductive loads, minimizing voltage spikes and reducing stress on mechanical components.

Engineers and system integrators appreciate the MOC3041 for its straightforward integration into existing designs. The DIP‑6 package allows for quick soldering, and the component’s low input current makes it compatible with a wide range of control logic levels, from 5 V microcontrollers to 12 V industrial PLC outputs. Whether you are retrofitting legacy equipment or designing a new line‑level controller, this optoisolator provides the safety and performance needed for mission‑critical applications.

Why Choose Us

Choosing DBParts means selecting a partner committed to quality, reliability, and customer support. Each MOC3041 unit undergoes rigorous testing to verify isolation voltage, response time, and zero‑cross accuracy, ensuring that you receive a component that meets or exceeds industry standards. Our six‑month warranty offers peace of mind, and our dedicated technical support team is ready to assist with schematic reviews, troubleshooting, and application guidance.

Beyond the warranty, DBParts provides comprehensive documentation, including datasheets, application notes, and reference designs that accelerate development cycles. The brand’s long‑standing presence in the optoelectronic market guarantees consistent supply chain stability, reducing lead times and inventory risks for manufacturers and distributors alike.

Key Features

• Zero‑cross detection reduces EMI and protects downstream devices
• Compact DIP‑6 package saves board space and simplifies assembly
• High isolation voltage ensures safety in high‑power applications
• Fast response time enables precise control of AC loads
• Six‑month warranty and responsive technical support for peace of mind

FAQ

What is the isolation voltage rating of the MOC3041?

The MOC3041 provides an isolation voltage of 5 kV RMS, which is sufficient for most industrial AC line applications and complies with IEC safety standards.

Can this optoisolator be used with 12 V logic signals?

Yes, the input LED of the MOC3041 is compatible with a wide range of forward voltages, including 12 V logic, as long as the appropriate current‑limiting resistor is used.

Is the zero‑cross feature adjustable?

The zero‑cross detection is built into the internal circuitry and does not require external adjustment. It automatically synchronizes the triac turn‑on with the AC line zero‑cross point.

How does the six‑month warranty work?

If the component fails due to manufacturing defects within six months of purchase, DBParts will replace the unit at no cost. Customers should retain the original packaging and proof of purchase for warranty claims.

What are the recommended operating temperature limits?

The MOC3041 is rated for operation from –40 °C to +85 °C, making it suitable for harsh industrial environments and outdoor installations when properly mounted.
