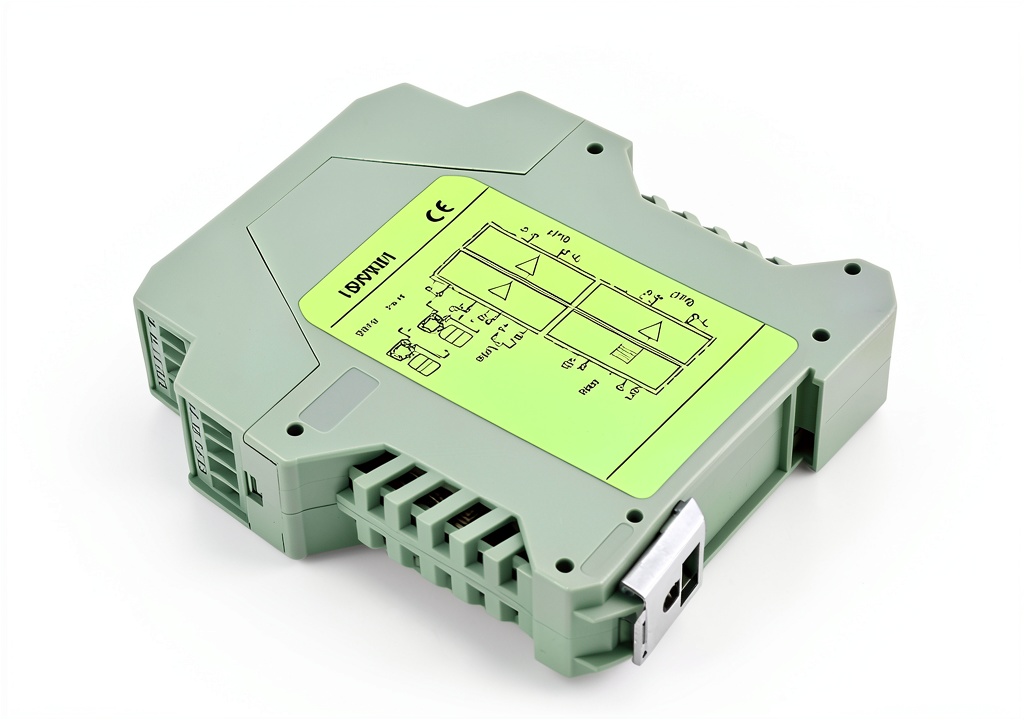

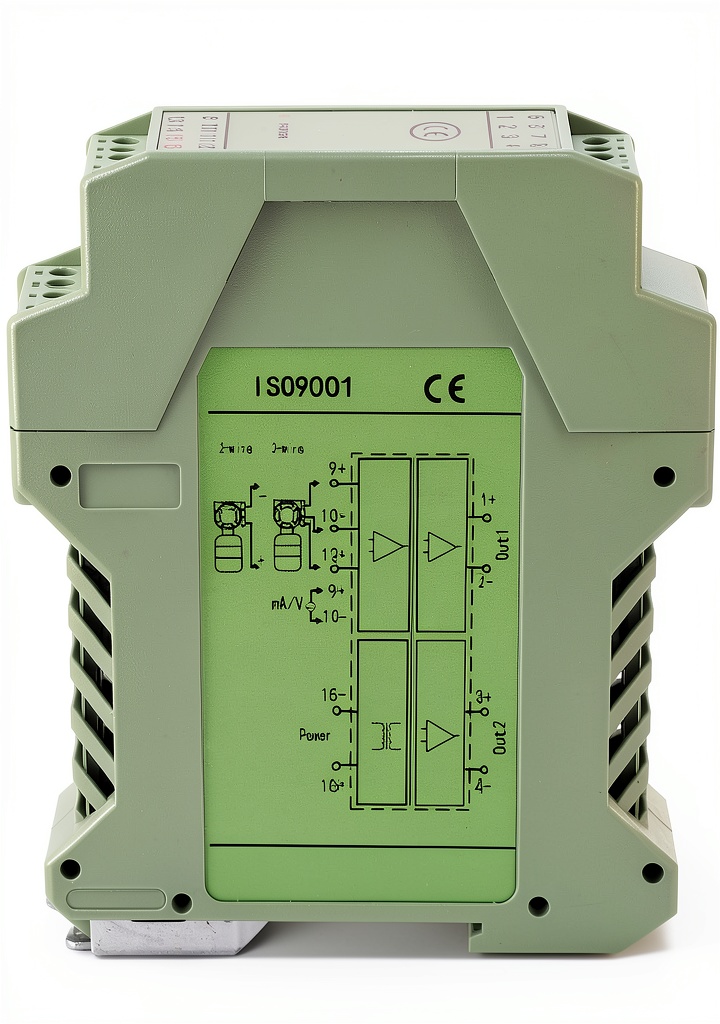

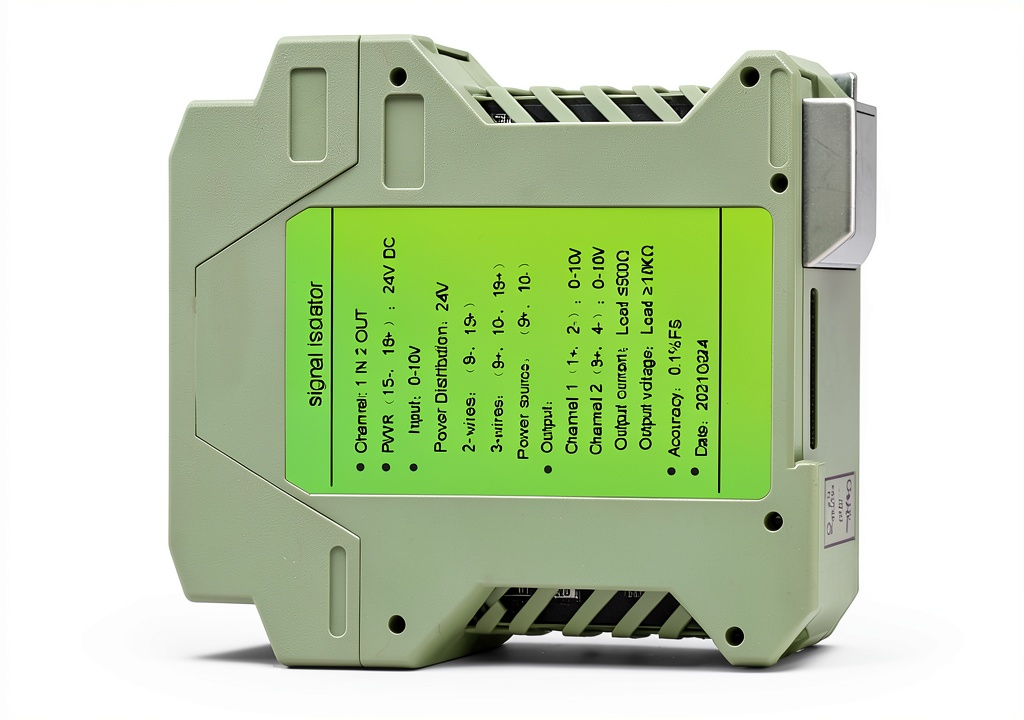

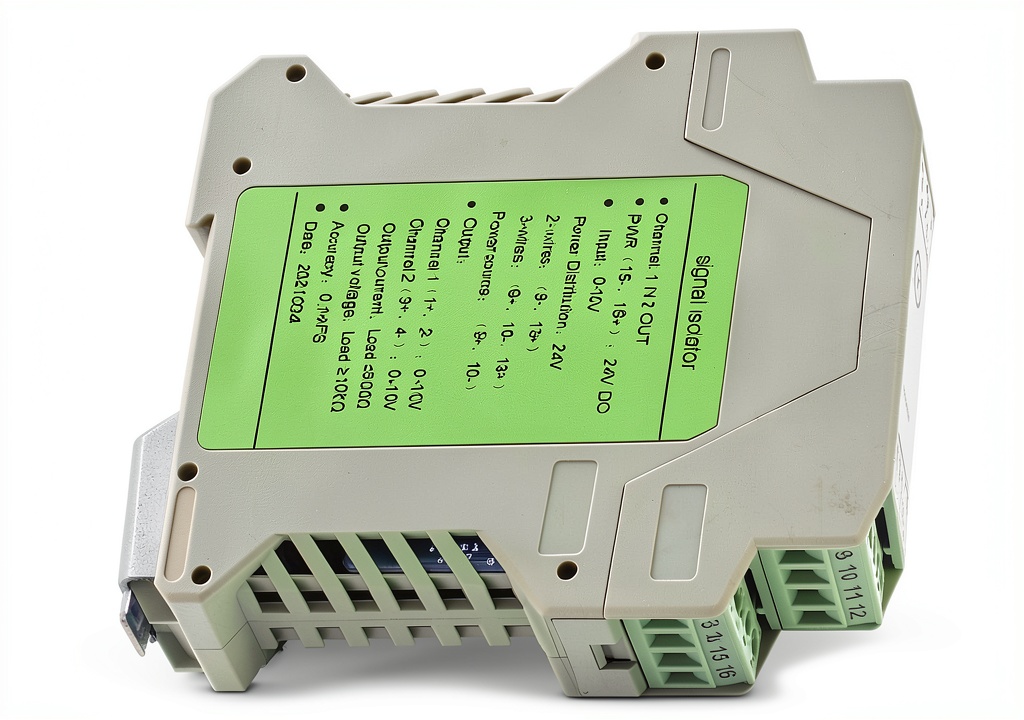

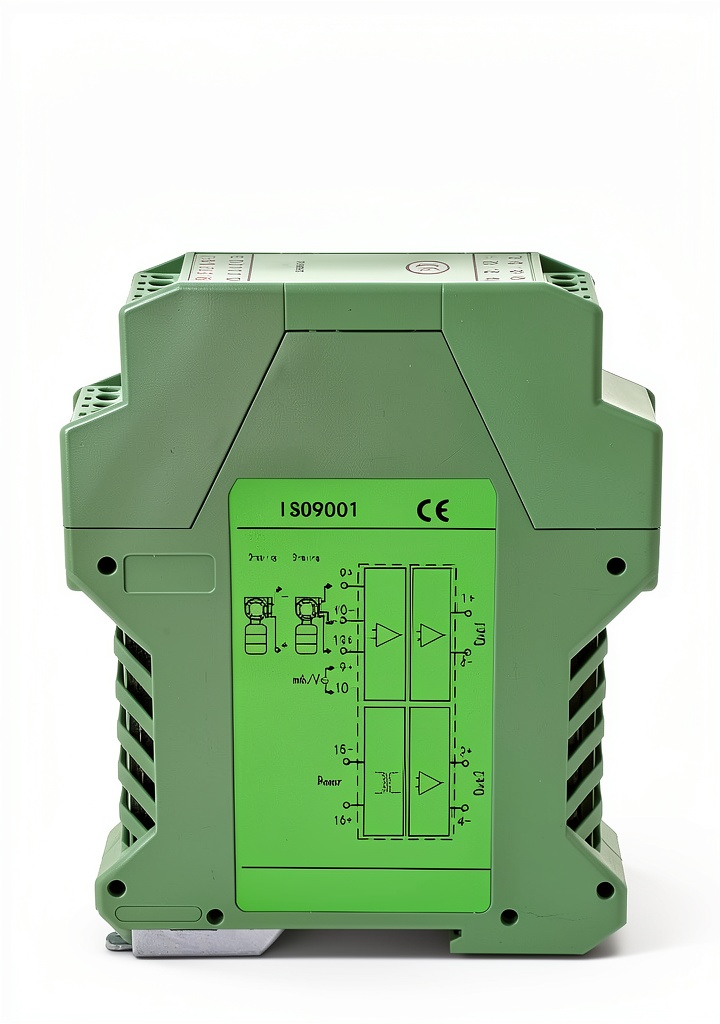

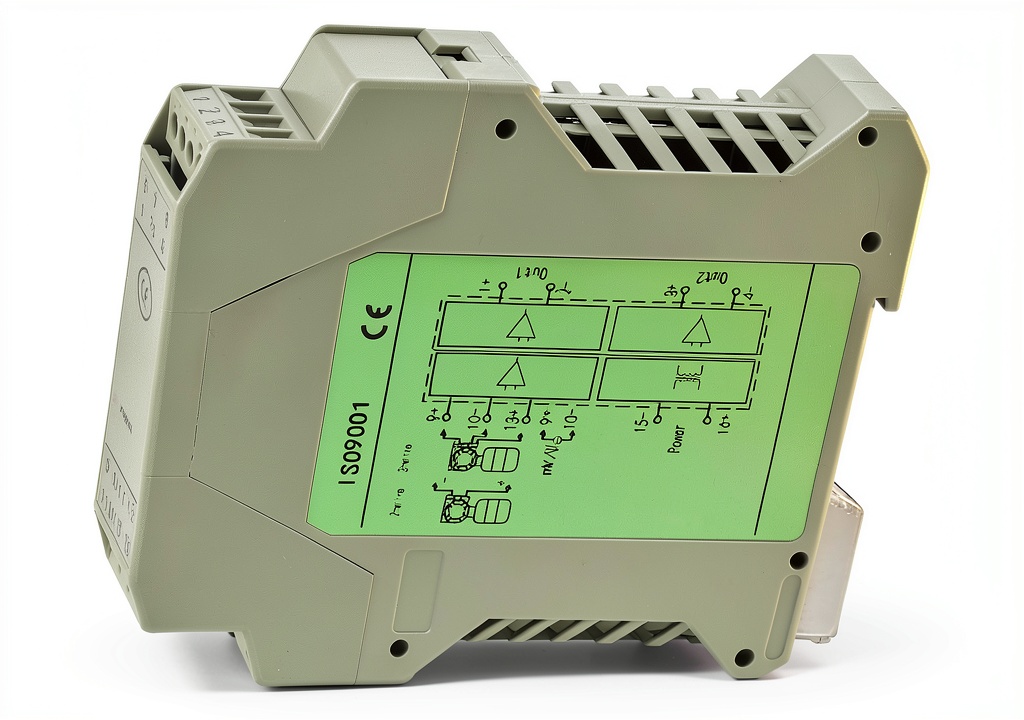

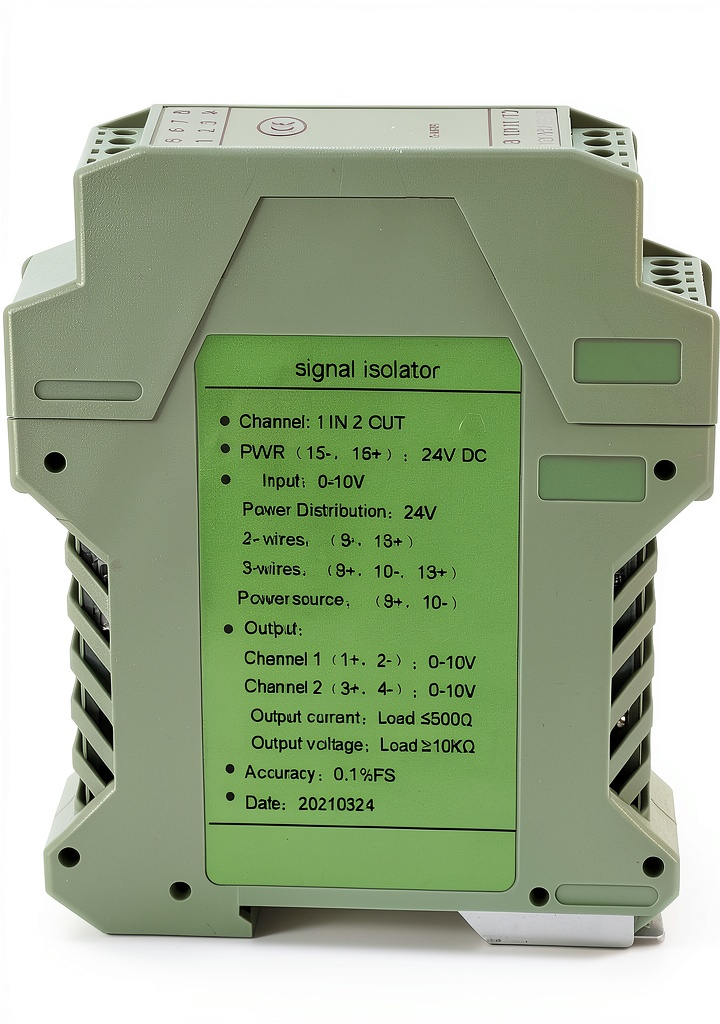

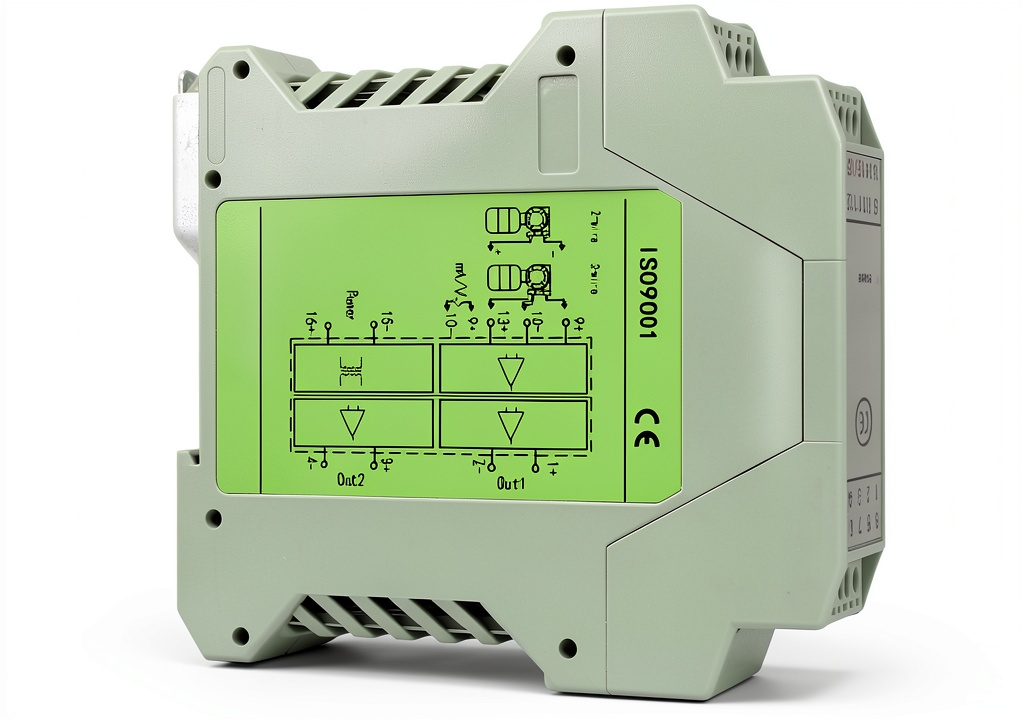

DC Isolator Shanrya 0-10V to 0-10V 1IN2OUT DC24V Current Conditioner

Description

Product Overview

The Shanrya DC Isolator is engineered to meet the demanding requirements of modern industrial automation. Built around a high‑quality TI microcontroller and a robust PCB transformer, the unit delivers clean 0‑10V to 0‑10V signal conditioning while being powered by a stable DC24V source. Its internal magnetic isolation separates input, output, and power lines, guaranteeing high dielectric strength and eliminating single‑source interference. The compact 35 mm guide‑rail design allows installation in tight spaces without compromising performance, and the device’s rugged enclosure meets IP‑rated standards for dust and moisture protection.

Designed for both 2‑wire and 3‑wire transmitters, the isolator supports a wide range of field devices, from temperature sensors to pressure transducers. The fast 10 ms response time ensures real‑time data accuracy, while the strong anti‑electromagnetic interference (EMI) shielding protects against noisy industrial environments. The unit’s low power consumption and temperature‑independent operation make it suitable for continuous use in factories, processing plants, and outdoor installations.

Manufactured by Shanrya, a trusted name in optoelectronic components, this product benefits from rigorous quality control processes. Each unit undergoes extensive testing for insulation resistance, leakage current, and vibration durability, ensuring long‑term reliability even under harsh conditions. The device’s compliance with international safety standards provides confidence for system integrators and end‑users alike.

Key technical specifications include a weight of 5.6 oz, dimensions of 5.04 × 4.65 × 1.22 in, and a single‑unit packaging. The product is rated #14 in the Optoisolators category on Amazon, reflecting its strong market acceptance and positive customer feedback.

Usage

In a typical plant setting, the DC Isolator is mounted on a standard 35 mm DIN rail alongside other control modules. It receives power from a DC24V bus and isolates the signal lines of connected transmitters, preventing ground loops and protecting sensitive electronics from voltage spikes. This configuration is ideal for monitoring temperature, pressure, and flow in process control loops where signal integrity is critical.

For outdoor or remote installations, the isolator’s sealed enclosure safeguards against moisture, dust, and temperature extremes. Engineers can deploy the unit in hazardous areas where conventional signal conditioners might fail, thanks to its high dielectric strength and robust construction.

System integrators often pair the isolator with PLCs or SCADA systems to provide clean analog inputs. The 0‑10V output can be directly wired to analog input modules, reducing the need for additional signal conversion hardware and simplifying overall system architecture.

Why Choose Us

Shanrya’s commitment to quality is reflected in the meticulous design of the DC Isolator. The use of a high‑precision TI microcontroller ensures accurate signal processing, while the PCB transformer provides reliable power isolation without sacrificing performance. Each component is selected for durability, resulting in a product that resists aging, vibration, and thermal cycling.

Our after‑sales support includes a comprehensive warranty, technical assistance from certified engineers, and access to detailed documentation. Customers benefit from rapid response times and a knowledgeable support team that can help with installation, troubleshooting, and system integration.

By choosing the Shanrya DC Isolator, users gain a competitive edge through reduced downtime, improved data accuracy, and lower total cost of ownership. The device’s modular design also allows easy upgrades or replacements without extensive rewiring, supporting future scalability of automation projects.

Key Features

• Fast 10 ms response time delivers real‑time data for precise process control.
• PCB transformer and opto‑coupler isolation protect against EMI and voltage spikes.
• Compact 35 mm guide‑rail design fits tight control panels without sacrificing performance.
• Robust construction with IP‑rated sealing ensures reliable operation in harsh environments.
• Dedicated technical support and warranty provide peace of mind for long‑term projects.

FAQ

What types of transmitters are compatible with this isolator?

The isolator works with both 2‑wire and 3‑wire analog transmitters, including temperature, pressure, and flow sensors that output a 0‑10V signal.

How does the magnetic isolation improve system reliability?

Magnetic isolation separates the power and signal paths, preventing ground loops and reducing the risk of voltage transients affecting the transmitter, which enhances overall system stability.

Can the isolator be used in hazardous or outdoor locations?

Yes, its sealed enclosure meets IP standards for dust and moisture resistance, and the device is rated for a wide temperature range, making it suitable for outdoor and hazardous area installations.

What is the warranty period and what does it cover?

Shanrya offers a one‑year limited warranty covering defects in materials and workmanship, along with access to technical support for installation and troubleshooting.

Is additional cooling required for the isolator in high‑temperature environments?

The isolator is designed with high‑temperature tolerance and does not require external cooling under normal operating conditions; however, adequate ventilation is recommended in extreme heat.
