Description
Product Overview

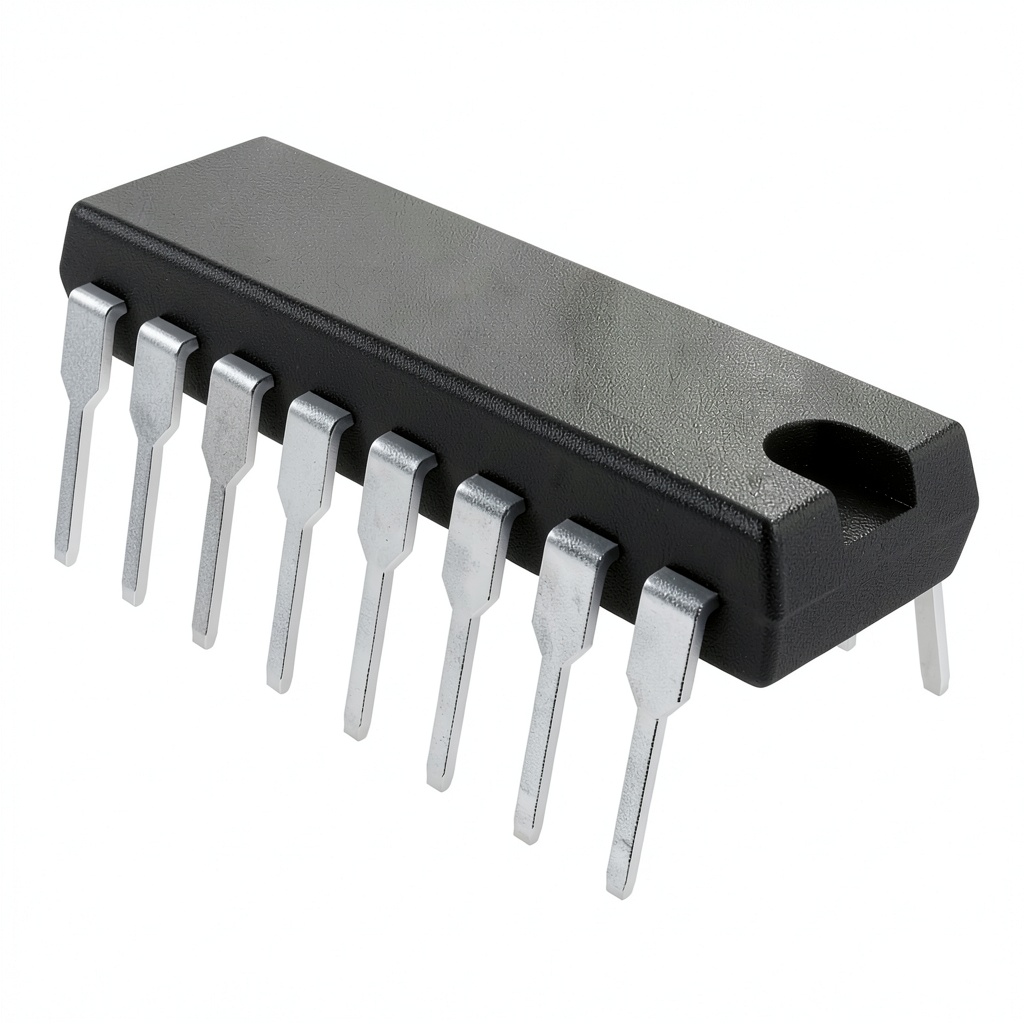

The CNY74-4H OPTOISO is a high‑performance optoisolator series engineered by Rizees for demanding industrial applications. Each unit in the five‑piece kit provides robust electrical isolation up to 5.3 kV, ensuring safe signal transfer between high‑voltage and low‑voltage circuits. The device features four independent channels, allowing multiple signal paths to be isolated within a single package, which reduces board space and simplifies wiring. With a maximum output voltage of 70 V, a typical forward voltage of 1.3 V, and a forward current rating of 60 mA, the optoisolator delivers reliable performance across a wide range of operating conditions. The component is rated for temperatures from –55 °C to 100 °C, making it suitable for harsh environments found in manufacturing, automation, and power conversion systems. Its DIP‑16 package offers easy insertion into standard printed circuit boards, and the lead configuration supports straightforward soldering and rework.
Usage
Designed for industrial electrical systems, the CNY74-4H OPTOISO excels in applications such as motor control interfaces, power supply monitoring, and safety interlocks. The four channels can be employed to isolate sensor feedback signals, protect microcontroller inputs from voltage spikes, and separate communication lines in PLC networks. Its high voltage isolation rating makes it ideal for use in high‑power converters, where it safeguards low‑voltage control circuitry from dangerous transients. The device also performs well in harsh environments, including factories with extreme temperature fluctuations, outdoor installations exposed to weather, and equipment that experiences frequent power cycling. Engineers appreciate the ability to mount the DIP‑16 package on standard PCBs without requiring specialized footprints, enabling rapid prototyping and easy integration into existing designs.
Why Choose Us
Rizees brings decades of experience in optoelectronic component manufacturing, guaranteeing that each CNY74-4H OPTOISO meets stringent quality standards. The product undergoes rigorous testing for isolation strength, leakage current, and thermal stability, ensuring consistent performance across the entire production batch. Our commitment to reliability is backed by a comprehensive warranty and responsive technical support, helping customers resolve integration challenges quickly. The five‑piece kit provides a cost‑effective solution for designers who need multiple isolated channels, reducing inventory complexity and procurement time. Additionally, the component’s robust construction and wide temperature range translate to longer service life, minimizing downtime and maintenance costs in critical industrial systems.
Key Features
- Five‑piece kit delivers four isolated channels per unit, simplifying system design.
- High isolation voltage of 5.3 kV protects sensitive electronics from dangerous spikes.
- Wide operating temperature range from –55 °C to 100 °C ensures reliable performance in harsh environments.
- Compact DIP‑16 package fits standard PCBs, reducing board space and assembly time.
- Rizees technical support and warranty provide peace of mind and fast assistance.
FAQ
What is the maximum voltage the optoisolator can handle?
The CNY74-4H OPTOISO is rated for a maximum isolation voltage of 5.3 kV, which is suitable for most industrial safety and signal isolation applications.
Can the device operate in extreme temperature conditions?
Yes, the component is specified to function reliably from –55 °C up to 100 °C, making it ideal for both indoor and outdoor industrial environments.
How many channels are provided per optoisolator?
Each optoisolator contains four independent channels, allowing multiple signals to be isolated within a single package.
Is the kit compatible with standard PCB layouts?
The DIP‑16 footprint conforms to common PCB design standards, so the kit can be easily integrated without custom footprints or special mounting hardware.
What support does Rizees offer for integration?
Rizees provides detailed datasheets, application notes, and a dedicated technical support team to assist with design, testing, and troubleshooting.
